LM-R01 · CORE RECTANGULAR
Rectangular LED Bathroom Mirror Platform for OEM Ranges
Jiachuang Mirror’s Recta One LM-R01 combines a wide rectangular form with front and back lighting. Recta One is a configurable rectangular LED bathroom mirror platform for repeatable product ranges. Coordinate related sizes, front or back lighting tiers, controls, mounting, market version and branded packaging.
| Model | Recta One · LM-R01 |
|---|---|
| Shape | Wide rectangular |
| Lighting | Front and back lighting |
| Buyer | OEM · Wholesale |
| Enquiry sizes | 600 × 800 mm / 800 × 1000 mm / 1000 × 700 mm |
SIZE, STYLE & SPECIFICATION
Build your Recta One brief.
Start with a size and the lighting and appearance you want. These are enquiry preferences; available combinations and final specifications are confirmed in your quotation and drawing.
Collection referenceLM-R01
Size previewReference proportions
Illustrative proportions; edge, frame and light details require an approved drawing.

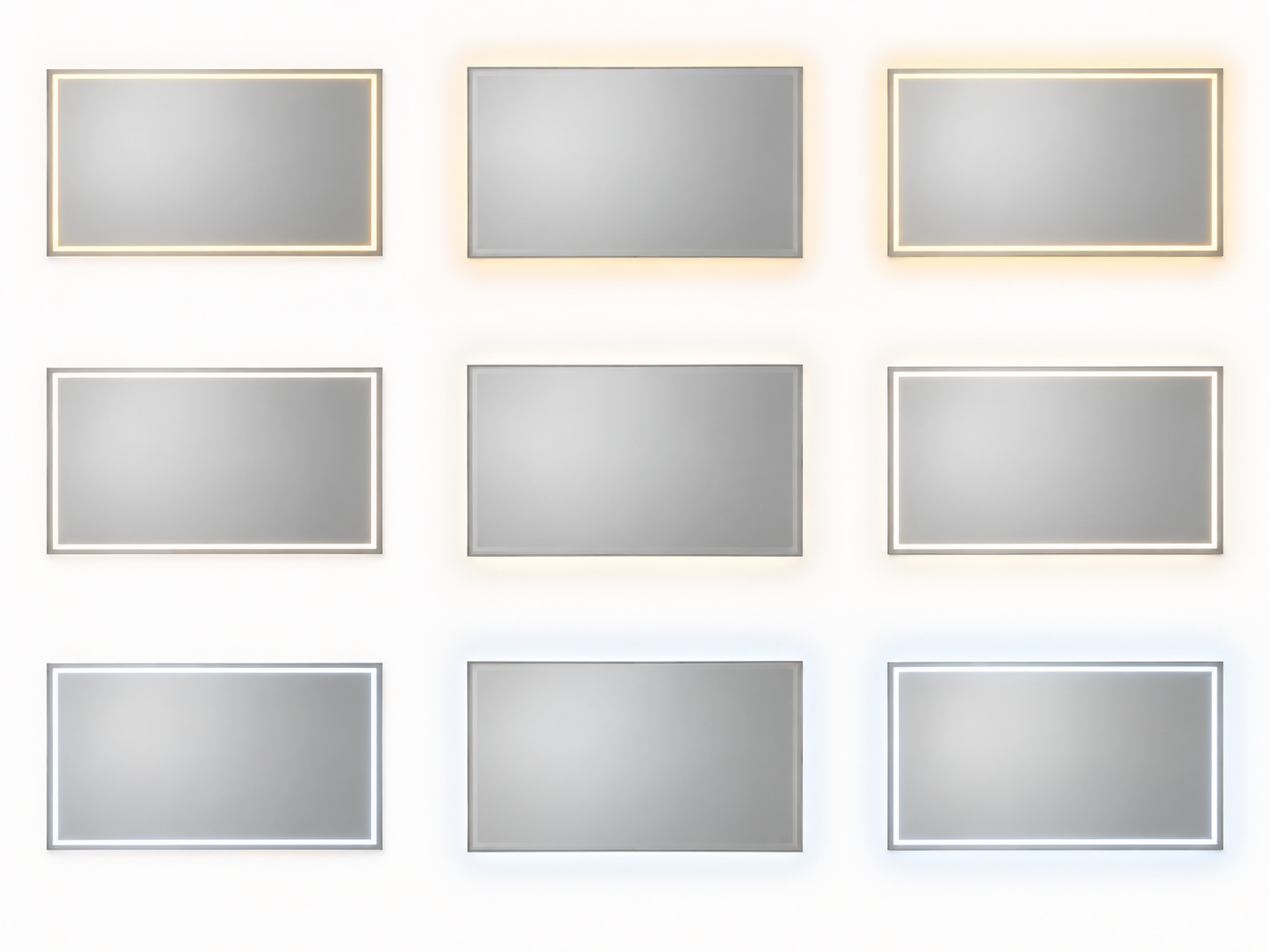

Lighting referenceFront + backlightNeutral white
Recta One
Wide rectangular · Front and back lighting
Size and lighting previews are illustrative. The lighting reference shows the collection appearance at a fixed size. Finish requests remain in your brief; final appearance and available combinations require a sample and approved drawing.Your enquiry brief
LM-R01Add preferences above, or ask for help choosing.
Continue with this configurationYour selections carry into the enquiry form. Add quantity and destination there.
MODEL & TECHNICAL PARAMETERS
A clear starting specification.
Use LM-R01 to identify this series. The final size, components, testing scope and installation details belong to the approved order specification.
| Parameter | Series direction / confirmation needed |
|---|---|
| Collection reference | Recta One · LM-R01 |
| Mirror shape | Wide rectangular |
| Dimension format | Width × height (W × H). Specify portrait or landscape orientation. |
| Size planning | 600 × 800 mm; 800 × 1000 mm; 1000 × 700 mm |
| Lighting directions to discuss | Front light; Backlight; Front + backlight |
| Frame / edge directions to discuss | Frameless edge; Edge detail to specify |
| Mounting planning | Review portrait or landscape hanging, the power position and the wall surface for each size. |
| Application | A rectangular core range for bathroom distributors, private label and residential developments. |
| Voltage & frequency | Choose a destination market to show the common mains reference. |
| Input power — planning reference | 15–40 W planning range. An enquiry benchmark based on size, light layout and anti-fog request; it is not a product rating. |
| Rated input power | Pending confirmation for the selected LED, driver, controls and anti-fog configuration, supported by the approved specification and test evidence. |
| Light output | Pending measurement for the selected configuration. Confirm luminous flux (lm) and, where required, illuminance (lux) under stated installation and test conditions. |
| Colour temperature & CRI | Share the required light colour and rendering target; values require configuration confirmation. |
| IP rating & electrical documentation | Choose a destination market; confirm the bathroom zone, tested rating and required local documentation. |
| Market certification & testing path | Choose a destination market to show the relevant certification, marking, testing and documentation route. |
| Glass specification & thickness | To be confirmed on the approved specification and drawing. |
| Overall depth, weight & fixing centres | To be confirmed on the approved drawing, including components and mounting. |
Compare common market electrical references
These values are market-planning references, not ratings assigned to LM-R01. IEC 60529 defines the IP classification system; the tested product rating, installation zone and local approval remain part of the final configuration review.
TECHNICAL DOWNLOADS
Carry LM-R01 from selection into a controlled RFQ.
Use the Recta One datasheet to coordinate its wide rectangular form, front and back lighting, electrical planning, configuration code and confirmation boundaries. The shared installation guide covers wall, wiring, mounting and maintenance inputs before a LM-R01 CAD or configuration drawing is released.
PRODUCT MEDIA SET
Installed view, catalog view and planning drawing.
Compare Recta One in context, isolate its wide rectangular form and front and back lighting direction, then use the planning drawing to discuss the final configuration.
Recta One on white
Use the straight-on LM-R01 view to compare its shape, visible lighting pattern and role within a planned range.
Front, side and mounting views
Use the LM-R01 drawing to discuss proportions, depth, light position and mounting. Final dimensions remain configuration-specific.
CONFIGURABLE DESIGN
Configure it for your channel and market.
A versatile rectangular design for distributor ranges and private-label programs.
- Front-and-back lighting option
- Portrait or landscape options
- Private-label ready
- 01Dimensions, proportion and orientation
- 02Front, back or combined lighting layout
- 03Colour-temperature and dimming options
- 04Anti-fog and control method
- 05Electrical version and mounting system
- 06Brand label, instructions and packaging
PLATFORM ROLE
Build a dependable rectangular core range without treating every market and sales channel as the same specification.
Adaptable core platform for OEM, private-label and distributor ranges.
01 · Installed context02 · White-background catalog view03 · Planning drawing04 · Configuration decision matrix05 · Brand and packaging workflow
STABLE PLATFORM ARCHITECTURE
Keep the product identity stable while the specification is configured.
Rectangular platform
A clean frameless mirror plane that can be reviewed in landscape or portrait proportions.
Layered light architecture
Front, back or combined light directions create distinct range positions from one platform logic.
Product configuration path
Controls, anti-fog intent, electrical version, mounting, labels and packaging are coordinated after the visible direction is selected.
CONFIGURATION MAP
Four groups of decisions to settle before quotation.
These are qualification questions, not fixed claims about an unselected SKU.
Form
- Target width, height and orientation
- Vanity or wall reference
- Preferred visible edge treatment
Lighting
- Front, back or combined lighting
- Fixed or adjustable light-colour direction
- Dimming intent
Operation
- Wall-switch or integrated control
- Anti-fog preference
- Destination electrical assumptions
Program
- Initial and repeat quantity
- Brand label and instruction scope
- Carton and sales-channel requirements
SELECTION RULES
Use the brief to eliminate the wrong direction.
- 01
Use landscape proportions for wider vanities and portrait proportions when vertical wall area is the stronger constraint.
- 02
Choose front light when visible task light is central to the range; use backlight for ambience; combine them when the program needs both roles.
- 03
Keep one control and electrical logic across related sizes where the destination and channel allow it.
- 04
Confirm labels, instructions and packaging only after the market version and configuration are fixed.
INSTALLATION & PACKAGING
Confirm the product beyond its front view.
Review wall construction, power position and orientation before the configuration drawing is confirmed.
Coordinate protection, carton identification and branded presentation with the selected product version.
BUYER FILE & CONFIRMATION PATH
Use the right reference at each sourcing stage.
Catalog reference
Use the installed and white-background LM-R01 views to shortlist this visible product direction.
Configuration drawing
Confirm size, orientation, light layout, controls, electrical and mounting assumptions.
Sample & packaging review
Align visible finish, function, labels, instructions, protection and presentation.
Order confirmation
Confirm price, schedule, warranty and documentation for the final LM-R01 configuration and destination.
STRONG FIT FOR
Recta One applications
BUYER FAQ
Questions about the Recta One LM-R01
Should a starting range use front light, backlight or both?
Start with the buyer task and price architecture. Front light emphasises visible task lighting, backlight creates an ambient wall effect, and a combined version can support a higher-feature range position. Final construction and commercial terms are confirmed for the selected direction.
Can several sizes share one product identity?
Yes. Related sizes and orientations can share the same lighting, control and brand language when each configuration is reviewed for proportion, component position, mounting and packaging.
RELATED DESIGNS
All designs Compare related designs.
TELL US ABOUT YOUR PROJECT
Start with the details you already know.
Build a dependable rectangular core range without treating every market and sales channel as the same specification.
Prefer to send your brief directly? sales@jiamirror.com
01 · Work email02 · What you need03 · Add details only if available
Prepare a Recta One brief.
A versatile rectangular design for distributor ranges and private-label programs.
