LM-F02 · FRAMED
Rounded Metal Frame LED Bathroom Mirror for Custom OEM
Jiachuang Mirror’s Contour Metal LM-F02 combines a rounded rectangle form with integrated perimeter light. Contour Metal combines rounded corners, a visible metal frame and integrated lighting. It suits buyers who want to coordinate finishes across taps, hardware and bathroom accessories.
| Model | Contour Metal · LM-F02 |
|---|---|
| Shape | Rounded rectangle |
| Lighting | Integrated perimeter light |
| Buyer | OEM · Interior supply |
| Enquiry sizes | 600 × 800 mm / 800 × 1000 mm / 1000 × 800 mm |
SIZE, STYLE & SPECIFICATION
Build your Contour Metal brief.
Start with a size and the lighting and appearance you want. These are enquiry preferences; available combinations and final specifications are confirmed in your quotation and drawing.
Collection referenceLM-F02
Size previewReference proportions
Illustrative proportions; edge, frame and light details require an approved drawing.

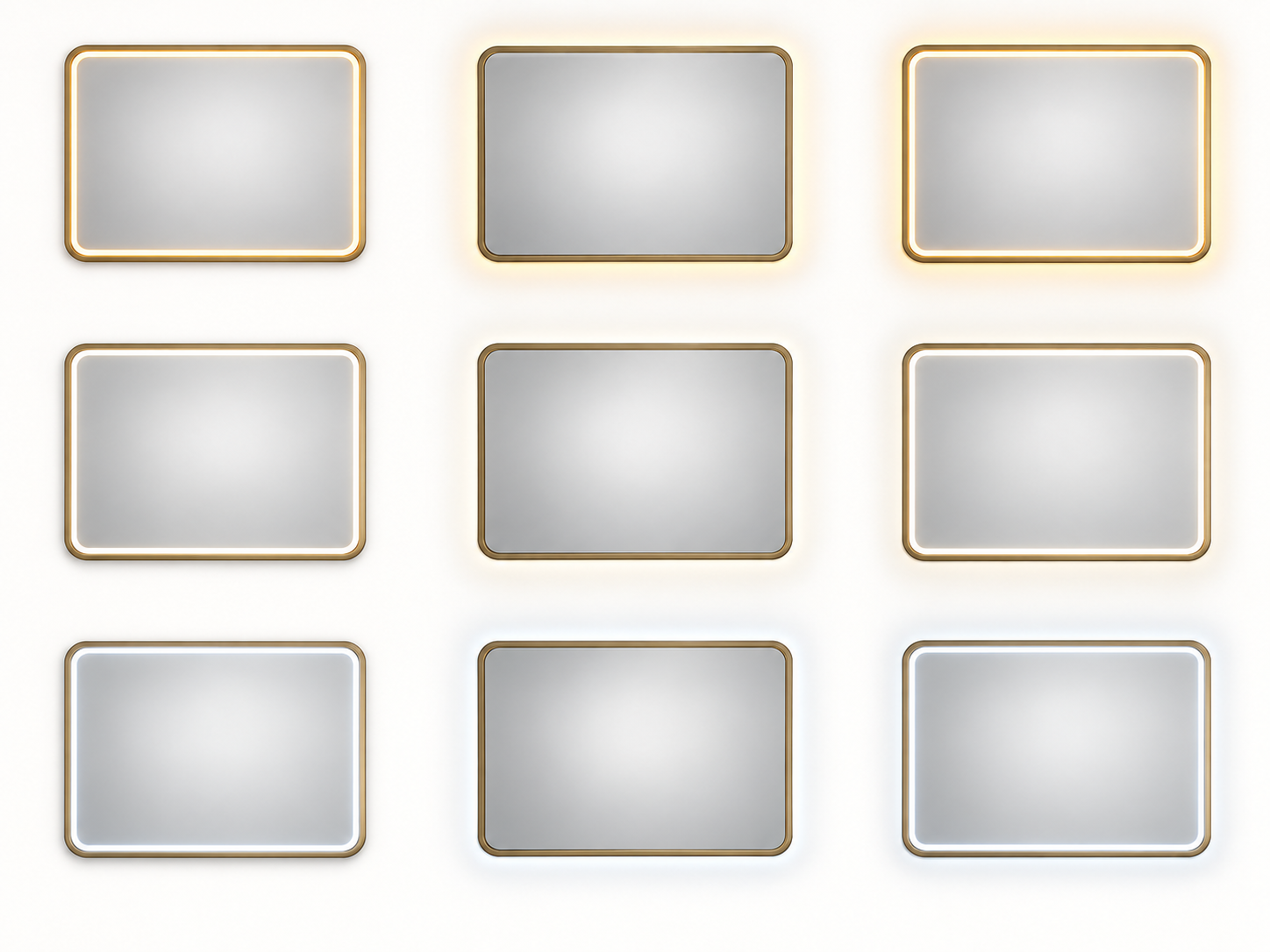

Lighting referenceIntegrated perimeter lightNeutral white
Contour Metal
Rounded rectangle · Integrated perimeter light
Size and lighting previews are illustrative. The lighting reference shows the collection appearance at a fixed size. Finish requests remain in your brief; final appearance and available combinations require a sample and approved drawing.Your enquiry brief
LM-F02Add preferences above, or ask for help choosing.
Continue with this configurationYour selections carry into the enquiry form. Add quantity and destination there.
MODEL & TECHNICAL PARAMETERS
A clear starting specification.
Use LM-F02 to identify this series. The final size, components, testing scope and installation details belong to the approved order specification.
| Parameter | Series direction / confirmation needed |
|---|---|
| Collection reference | Contour Metal · LM-F02 |
| Mirror shape | Rounded rectangle |
| Dimension format | Overall width × height (W × H), corner radius, orientation and metal-frame profile. |
| Size planning | 600 × 800 mm; 800 × 1000 mm; 1000 × 800 mm |
| Lighting directions to discuss | Integrated perimeter light |
| Frame / edge directions to discuss | Metal frame · finish to specify; Customer hardware finish reference |
| Mounting planning | Confirm frame projection, corner radius, mounting and power position; review protection for the selected finish. |
| Application | Residential and private-label ranges coordinating a rounded metal frame with bathroom hardware. |
| Voltage & frequency | Choose a destination market to show the common mains reference. |
| Input power — planning reference | 15–40 W planning range. An enquiry benchmark based on size, light layout and anti-fog request; it is not a product rating. |
| Rated input power | Pending confirmation for the selected LED, driver, controls and anti-fog configuration, supported by the approved specification and test evidence. |
| Light output | Pending measurement for the selected configuration. Confirm luminous flux (lm) and, where required, illuminance (lux) under stated installation and test conditions. |
| Colour temperature & CRI | Share the required light colour and rendering target; values require configuration confirmation. |
| IP rating & electrical documentation | Choose a destination market; confirm the bathroom zone, tested rating and required local documentation. |
| Market certification & testing path | Choose a destination market to show the relevant certification, marking, testing and documentation route. |
| Glass specification & thickness | To be confirmed on the approved specification and drawing. |
| Overall depth, weight & fixing centres | To be confirmed on the approved drawing, including components and mounting. |
Compare common market electrical references
These values are market-planning references, not ratings assigned to LM-F02. IEC 60529 defines the IP classification system; the tested product rating, installation zone and local approval remain part of the final configuration review.
TECHNICAL DOWNLOADS
Carry LM-F02 from selection into a controlled RFQ.
Use the Contour Metal datasheet to coordinate its rounded rectangle form, integrated perimeter light, electrical planning, configuration code and confirmation boundaries. The shared installation guide covers wall, wiring, mounting and maintenance inputs before a LM-F02 CAD or configuration drawing is released.
PRODUCT MEDIA SET
Installed view, catalog view and planning drawing.
Compare Contour Metal in context, isolate its rounded rectangle form and integrated perimeter light direction, then use the planning drawing to discuss the final configuration.
Contour Metal on white
Use the straight-on LM-F02 view to compare its shape, visible lighting pattern and role within a planned range.
Front, side and mounting views
Use the LM-F02 drawing to discuss proportions, depth, light position and mounting. Final dimensions remain configuration-specific.
CONFIGURABLE DESIGN
Configure it for your channel and market.
A softer framed rectangle for coordinated finish-led bathroom ranges.
- Rounded metal frame
- Coordinates with bathroom finishes
- Fits premium residential ranges
- 01Corner radius, size and orientation
- 02Frame profile and finish
- 03Light layout and colour-temperature options
- 04Dimming, control and anti-fog options
- 05Electrical version and mounting
- 06Brand presentation and packaging
PLATFORM ROLE
Coordinate rounded geometry and visible metal finish with the bathroom hardware schedule and product range.
Rounded metal-frame platform for finish-led private-label, residential and interior-supply programs.
01 · Finish-led room context02 · White-background catalog view03 · Radius and frame drawing04 · Hardware coordination matrix05 · Finish-protection workflow
STABLE PLATFORM ARCHITECTURE
Keep the product identity stable while the specification is configured.
Rounded rectangle
Soft corners retain the practicality of a rectangular mirror while giving the platform a distinct finish-led identity.
Visible metal perimeter
The frame is part of the interior finish composition and requires controlled profile and surface direction.
Integrated perimeter light
Light, frame and reflected area are balanced within the selected radius and orientation.
CONFIGURATION MAP
Four groups of decisions to settle before quotation.
These are qualification questions, not fixed claims about an unselected SKU.
Geometry
- Width, height and orientation
- Corner radius
- Vanity and wall relationship
Metal frame
- Profile
- Finish and sheen reference
- Hardware coordination
Light and operation
- Perimeter light position
- Dimming and light colour
- Control and anti-fog intent
Program
- Related sizes
- Market and quantity
- Surface protection, labels and packaging
SELECTION RULES
Use the brief to eliminate the wrong direction.
- 01
Choose corner radius in proportion to the mirror size and adjacent bathroom geometry.
- 02
Approve the metal finish against a controlled reference and intended room hardware.
- 03
Review reflected area and light position after the frame profile and radius are selected.
- 04
Use finish-safe wrapping and corner protection matched to the approved surface.
INSTALLATION & PACKAGING
Confirm the product beyond its front view.
Confirm frame projection, radius, mounting and power relationship on the final configuration drawing.
Coordinate surface films, soft contact materials and corner protection with the selected finish.
BUYER FILE & CONFIRMATION PATH
Use the right reference at each sourcing stage.
Catalog reference
Use the installed and white-background LM-F02 views to shortlist this visible product direction.
Configuration drawing
Confirm size, orientation, light layout, controls, electrical and mounting assumptions.
Sample & packaging review
Align visible finish, function, labels, instructions, protection and presentation.
Order confirmation
Confirm price, schedule, warranty and documentation for the final LM-F02 configuration and destination.
STRONG FIT FOR
Contour Metal applications
BUYER FAQ
Questions about the Contour Metal LM-F02
How should the corner radius be selected?
Review it against the overall mirror size, vanity, cabinetry and other rounded forms. Final radius, frame profile, light position and packaging are confirmed together.
Can the metal finish match taps and accessories?
A coordinated direction can be reviewed from a finish reference, but exact appearance depends on material, process, profile, sheen and viewing conditions and must be confirmed for the selected configuration.
RELATED DESIGNS
All designs Compare related designs.
TELL US ABOUT YOUR PROJECT
Start with the details you already know.
Coordinate rounded geometry and visible metal finish with the bathroom hardware schedule and product range.
Prefer to send your brief directly? sales@jiamirror.com
01 · Work email02 · What you need03 · Add details only if available
Prepare a Contour Metal brief.
A softer framed rectangle for coordinated finish-led bathroom ranges.
