FRAMED · LM-A01 · ArchLine

Arched Framed LED Bathroom Mirror for Private Label Programs

Name: Arched Framed LED Bathroom Mirror for Private Label Programs
Brand: Jiachuang Mirror
SKU: LM-A01

ArchLine combines an arched top with a slim metal frame in a configurable LED mirror. It suits boutique retail, residential development and hospitality interiors.

SHAPEArched top

LIGHTINGIntegrated inner light

BUYER FITPrivate label · Project

Choose size & options Enquire about LM-A01

Arched Framed LED Bathroom Mirror for Private Label Programs — ArchLine LM-A01

SIZE, STYLE & SPECIFICATION

Build your ArchLine brief.

Start with a size and the lighting and appearance you want. These are enquiry preferences; available combinations and final specifications are confirmed in your quotation and drawing.

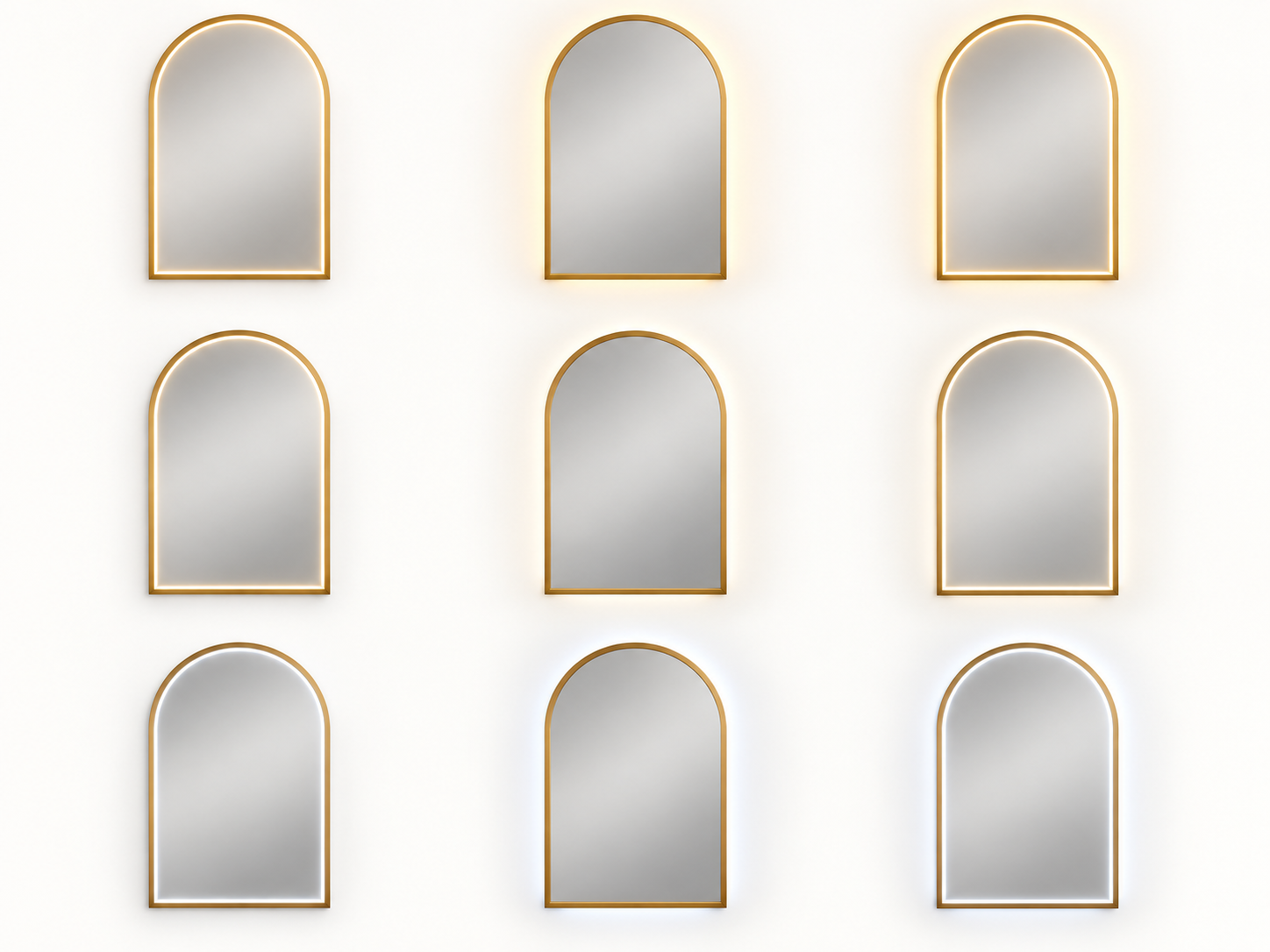

ArchLine Inner light following the arch, neutral white illustrative lighting reference — ArchLine
Arched top · Integrated inner light
Size and lighting previews are illustrative. The lighting reference shows the collection appearance at a fixed size. Finish requests remain in your brief; final appearance and available combinations require a sample and approved drawing.

01 Start with your dimensions

Suggested enquiry sizes. Final dimensions and configuration are confirmed on the drawing.

Requested dimensions or custom size

Overall width × height (W × H), plus arch rise or shoulder height and frame profile.

02 See the lighting change

Lighting layout

Light colour

Frame / edge preference

Dimming preference

Finish or hardware reference

03 Set the target-market referenceDestination market

04 Add operation preferences

Control preference

Anti-fog preference

Your enquiry brief

LM-A01Add preferences above, or ask for help choosing.

Continue with this configuration

Your selections carry into the enquiry form. Add quantity and destination there.

MODEL & TECHNICAL PARAMETERS

A clear starting specification.

Use LM-A01 to identify this series. The final size, components, testing scope and installation details belong to the approved order specification.

ArchLine LM-A01 specification planning
Parameter	Series direction / confirmation needed
Collection reference	ArchLine · LM-A01
Mirror shape	Arched top
Dimension format	Overall width × height (W × H), plus arch rise or shoulder height and frame profile.
Size planning	600 × 900 mm; 700 × 1000 mm
Lighting directions to discuss	Inner light following the arch
Frame / edge directions to discuss	Frame finish to specify; Customer hardware finish reference
Mounting planning	Check the arch against ceiling and wall-light clearances; confirm hanging and protection for the upper curve.
Application	Boutique hospitality, premium residential bathrooms and decorative private-label collections.
Voltage & frequency	Choose a destination market to show the common mains reference.
Input power — planning reference	15–40 W planning range. An enquiry benchmark based on size, light layout and anti-fog request; it is not a product rating.
Rated input power	Pending confirmation for the selected LED, driver, controls and anti-fog configuration, supported by the approved specification and test evidence.
Light output	Pending measurement for the selected configuration. Confirm luminous flux (lm) and, where required, illuminance (lux) under stated installation and test conditions.
Colour temperature & CRI	Share the required light colour and rendering target; values require configuration confirmation.
IP rating & electrical documentation	Choose a destination market; confirm the bathroom zone, tested rating and required local documentation.
Glass specification & thickness	To be confirmed on the approved specification and drawing.
Overall depth, weight & fixing centres	To be confirmed on the approved drawing, including components and mounting.

Compare common market electrical references

Europe & United Kingdom220–240 V AC · 50 Hz

IP44 is a common bathroom-mirror starting point

Confirm the bathroom zone, national wiring rules, driver and required declarations for the destination.

United States & Canada110–120 V AC · 60 Hz

Confirm damp-location listing; IP alone may not satisfy local approval

Confirm the required listing, bathroom location and GFCI-protected circuit with the project electrician.

Australia & New Zealand220–240 V AC · 50 Hz

IP44 is a common bathroom-mirror starting point

Confirm AS/NZS installation requirements, plug or hardwire format and product approval for the destination.

Middle East220–240 V AC · 50 or 60 Hz by country

IP44 is a common enquiry baseline; the project zone can require more

Confirm the destination country so the driver, frequency, plug or hardwire format and documents can be checked.

Japan100 V AC · 50 or 60 Hz by region

Confirm the required bathroom-use protection and local approval

Confirm the installation region, product approval, driver and wet-area position before quotation.

These values are market-planning references, not ratings assigned to LM-A01. IEC 60529 defines the IP classification system; the tested product rating, installation zone and local approval remain part of the final configuration review.

PRODUCT MEDIA SET

Installed view, catalog view and planning drawing.

Compare ArchLine in context, isolate its arched top form and integrated inner light direction, then use the planning drawing to discuss the final configuration.

ArchLine LM-A01 LED bathroom mirror on white background — 01 · CATALOG VIEW
ArchLine on white
Use the straight-on LM-A01 view to compare its shape, visible lighting pattern and role within a planned range.

ArchLine LM-A01 configuration planning line drawing — 02 · CONFIGURATION PLANNING DRAWING
Front, side and mounting views
Use the LM-A01 drawing to discuss proportions, depth, light position and mounting. Final dimensions remain configuration-specific.

CONFIGURABLE DESIGN

Configure it for your channel and market.

A decorative framed design for curated bathroom and hospitality interiors.

Decorative arch form
Slim metal frame
Fits premium ranges

01Arch proportion and overall dimensions
02Frame colour and surface finish
03Integrated light layout
04Colour-temperature, dimming and anti-fog options
05Control, electrical and mounting details
06Project or retail packaging

PLATFORM ROLE

Coordinate arch geometry, frame finish and integrated light as one premium product identity.

Arched framed platform for boutique hospitality, premium residential and curated private-label ranges.

01 · Boutique interior context02 · White-background catalog view03 · Arch proportion drawing04 · Frame-finish guide05 · Premium packaging workflow

STABLE PLATFORM ARCHITECTURE

Keep the product identity stable while the specification is configured.

Architectural arch

A curved top and straight lower body create a recognisable premium silhouette above the vanity.

Framed light integration

The visible frame and inner light are composed together so neither reads as an afterthought.

Premium range position

Finish, proportion and packaging can be coordinated with a higher-design retail or project tier.

CONFIGURATION MAP

Four groups of decisions to settle before quotation.

These are qualification questions, not fixed claims about an unselected SKU.

Arch geometry

Overall width and height
Arch rise and shoulder position
Vanity relationship

Frame

Profile
Finish and sheen
Coordination with room hardware

Lighting and operation

Inner light position
Light colour and dimming
Control and anti-fog intent

Program

Retail or project use
Market and quantity
Presentation and non-rectangular protection

SELECTION RULES

Use the brief to eliminate the wrong direction.

01
Set the arch shoulder and rise from the complete elevation, not the curved top in isolation.
02
Keep enough useful mirror area below the arch for the intended user and vanity height.
03
Coordinate frame finish with the wider hardware schedule and selected light direction.
04
Validate upper-arch protection, orientation markings and carton presentation after geometry approval.

INSTALLATION & PACKAGING

Confirm the product beyond its front view.

Coordinate the arch with ceiling, wall-light and vanity clearances before the drawing is confirmed.

Use orientation control and tailored upper-edge protection for the selected geometry.

BUYER FILE & CONFIRMATION PATH

Use the right reference at each sourcing stage.

Catalog reference

Use the installed and white-background LM-A01 views to shortlist this visible product direction.

Configuration drawing

Confirm size, orientation, light layout, controls, electrical and mounting assumptions.

Sample & packaging review

Align visible finish, function, labels, instructions, protection and presentation.

Order confirmation

Confirm price, schedule, warranty and documentation for the final LM-A01 configuration and destination.

STRONG FIT FOR

ArchLine applications

01Boutique hotels

02Premium residential

03Curated bathroom collections

BUYER FAQ

Questions about the ArchLine LM-A01

Which dimensions define an arched mirror clearly?

Overall width and height are not enough. Include the arch rise or shoulder position, vanity relationship, frame profile and mounting orientation in the configuration review.

Can ArchLine be used in hotel programs?

Yes, where the room design supports a decorative framed direction. Room types, quantities, finish, guest operation, mounting and project packaging still require coordination.
